Upgrade your Volkswagen radio with the HEIGH10 10-inch infotainment system. Retain all OEM features, vehicle settings, and more. All in one easy-to-install, plug-and-play package.
HEIGH10 – 10 INCH TOUCHSCREEN

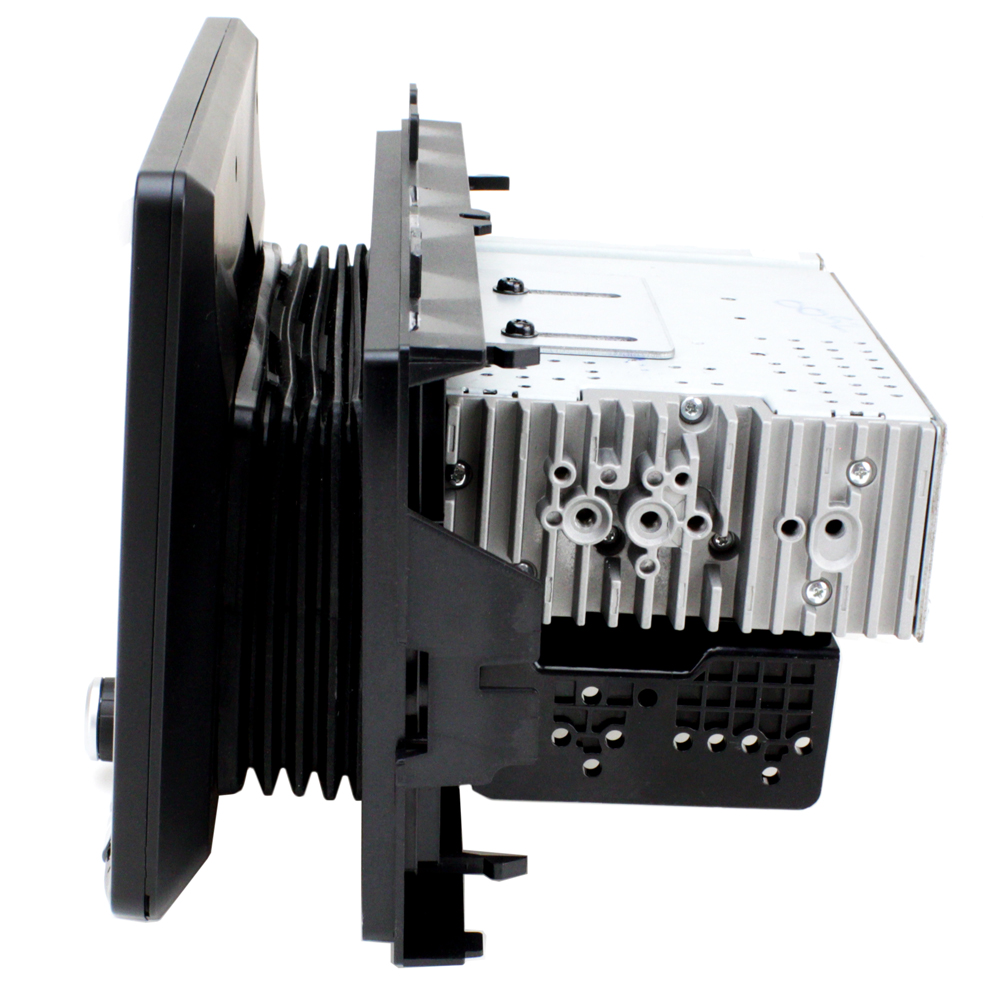

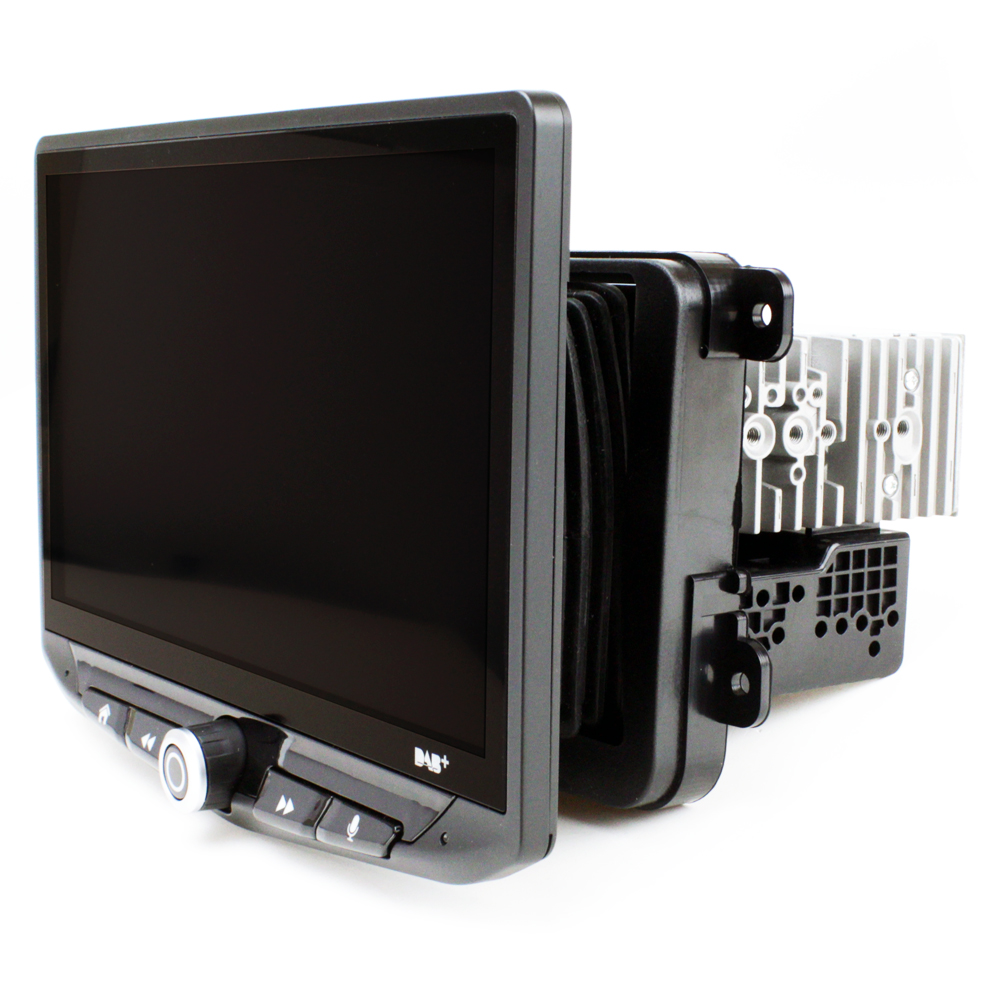

Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colours for a full visual experience, the HEIGH10® is designed to enhance screen size and infotainment features for drivers. The display and main tuner box offer a modular design, bolstering installation flexibility in space-limited applications and in some cases, even where no installation dash kit is available.
The HEIGH10 features Anti-Glare and Anti-Reflection technology for the best outdoor visibility. Personalize your display with customizable RGB illumination to match factory illumination, or create your own.
VW EOS 2006-2015
VW Fusca A5 2005-2011
VW Golf MK5/MK6 2003-2013
VW Jetta 1K5 2005-2015
VW Magotan B6 2005-2011
VW Polo MK5 2009-2014
VW Passat B6/B7 2005-2015
VW Sagitar 1K5 2005-2011
VW Scirocco MK3 2008-2015
VW Touran 1T 2003-2015
VW Vento 1K5 2005-2011
Applications above that have the following OEM head unit: RCD200, RCD300, RCD310, RCD500, RCD510

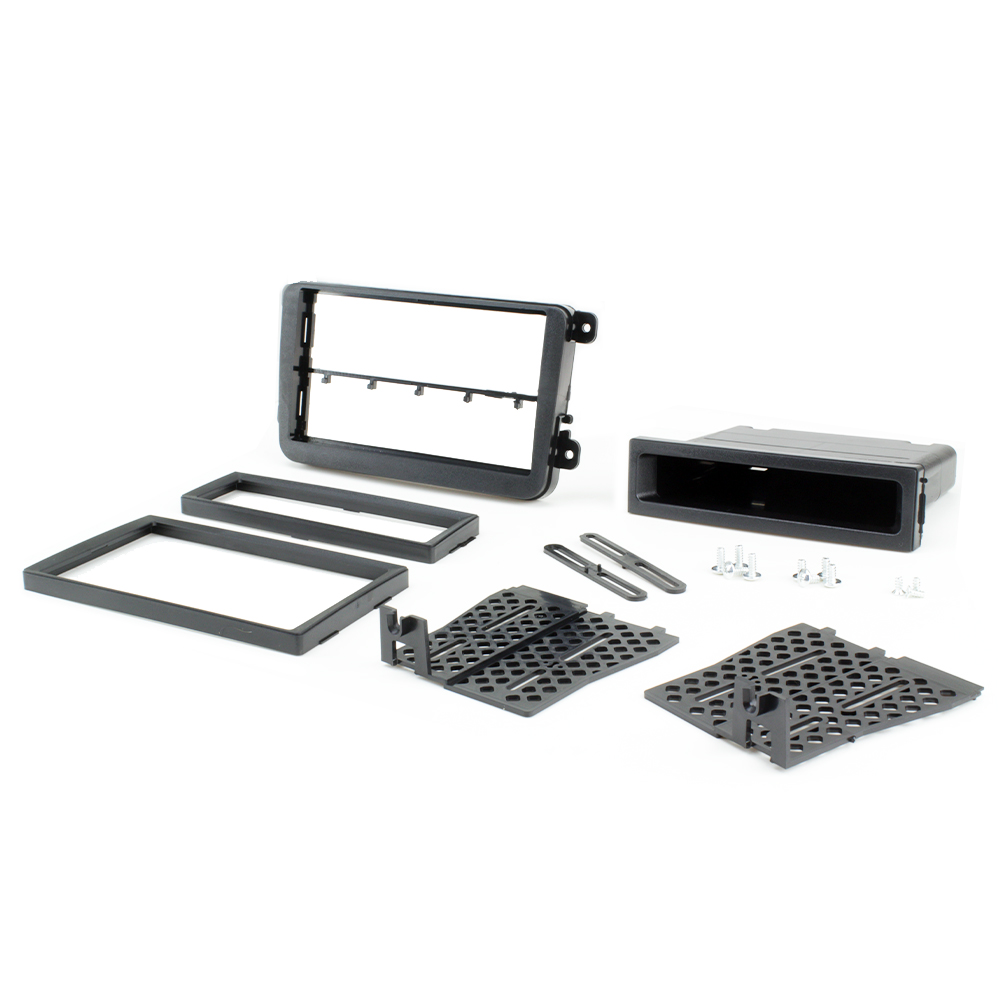

• For bespoke installation into the vehicle, the dash kit and mounting included provide a factory look and feel when the HEIGH10 display is installed.

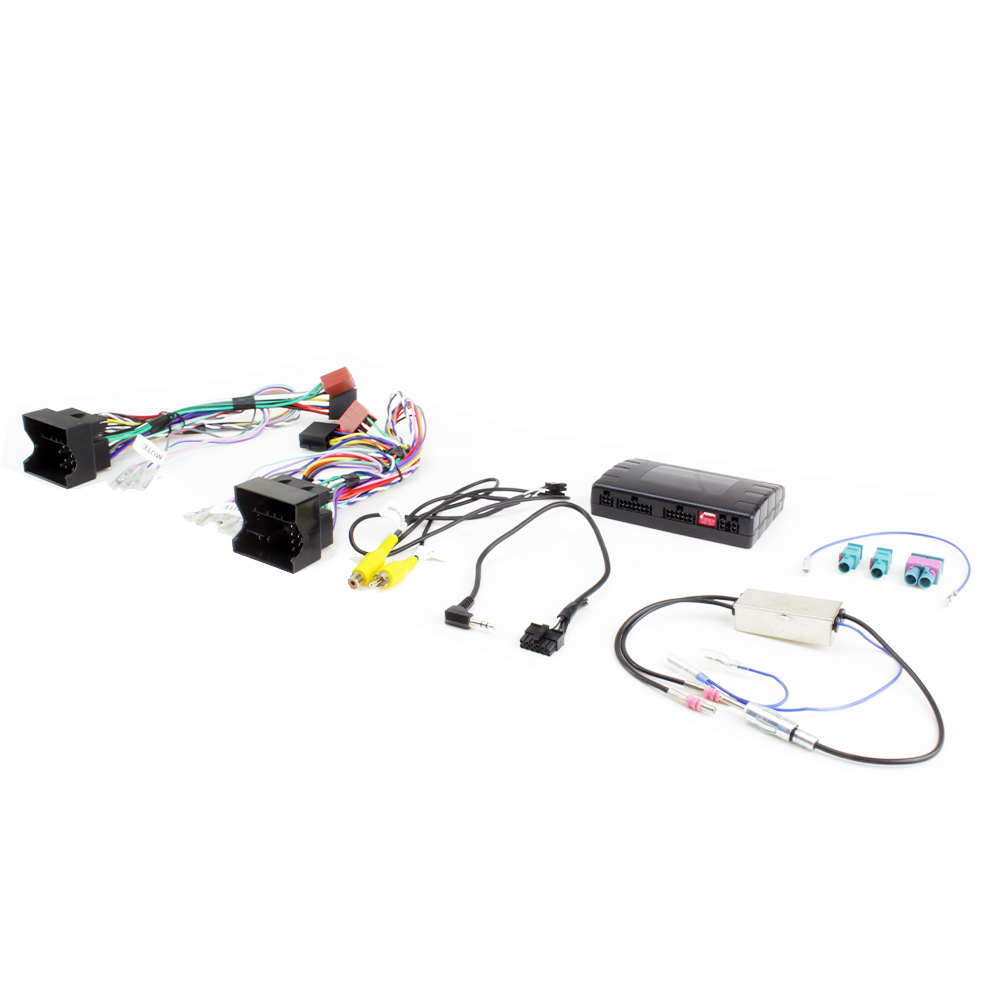

• The vehicle-specific harness provides a direct connection between the vehicle and the HEIGH10.
• The interface provides more control over your Volkswagens infotainment installation with camera triggers and steering wheel controls.
• Steering wheel control functionality
• Phone button compatibility
• Climate control visualisation
• Amplified system
• Park assist audio and graphics
• Vehicle menus which include Driver Position and Amplifier Settings.
• Outputs for speed pulse, reverse gear and park brake
• Aftermarket camera feed (if applicable)
YOUR MEDIA, YOUR WAY
Gain total access to your smartphone’s music and navigation capabilities.
• Apple CarPlay®
• Google Android Auto™
• DAB+ Digital Radio
• AM/FM radio
• 2 USB rear inputs, 1.5-Amp output
• Hands-free Bluetooth® 4.2
• A2DP with aptX™ (for hands-free calling and music streaming)
HEIGH10’s sonic capabilities allow for a versatile and more detailed sound experience.
• Built-in amplifier (16W RMS x 4)
• 4V, 6ch RCA audio outputs with subwoofer control
• Toslink (optical) digital audio output
• 15-band adjustable graphic EQ
• 3 user EQ presets for each audio source
• Built-in crossover with High Pass Filter (HPF) and Low Pass Filter (LPF)
A SAFER RIDE
HEIGH10 4 AHD camera inputs help reduce risk and increase safety.
• 4 independent AHD camera inputs and triggers
• Onscreen camera input switching
• Customisable camera settings menu
• Rear camera selectable audio input for commercial and motorhome/campervan applications
• HEIGH10 10-inch touchscreen display/infotainment system
• Vehicle-specific radio mounting dash kit
• Complete the vehicle integration module
• Vehicle & radio specific plug-and-play harnessing
• AM/FM antenna adapter
• USB retention cable
• Stereo connection lead
