HONDA CIVIC 2005-2011 10-INCH INTEGRATED MULTIMEDIA SYSTEM WITH APPLE CARPLAY & ANDROID AUTO

Part no.: UN1810E-HD1

This 10-inch digital touchscreen multimedia system offers easy smartphone connectivity, supporting popular features such as Apple CarPlay, Android Auto, DAB/DAB+ Digital Radio, hands-free calling and Bluetooth. Additionally, it comes with four camera inputs, providing extra safety and convenience. Retain key features and settings with our vehicle-specific integration kit.

Media-Icons

In Stock
Add Apple CarPlay or Android Auto
Complete Plug & Play Vehicle Integration
TouchScreen-Iconhigh-resolution 10-Inch Touchscreen
HEIGH10 – 10 INCH TOUCHSCREEN

Featuring a high-resolution, 10-inch digital touchscreen with 16.7 million colours for a full visual experience, the HEIGH10® is designed to enhance screen size and infotainment features for drivers.

The HEIGH10 features Anti-Glare and Anti-Reflection technology for the best in car visibility. Personalise your display with customisable RGB illumination to match factory illumination, or create your own.

INTEGRATION

• Upgrade to a state-of-the-art infotainment system
• Vehicle-specific installation kit for a seamless plug-and-play installation
• Dashboard fascia designed to fit your vehicle

RETAIN KEY VEHICLE CONTROLS & FEATURES

• Steering wheel controls
• Phone buttons
• Time & date configuration
• Climate controls

KEY FEATURES

YOUR MEDIA, YOUR WAY

Gain total access to your smartphone’s music and navigation capabilities.

• Apple CarPlay®
• Google Android Auto™
• DAB+ Digital Radio
• AM/FM radio
• 2 USB rear inputs, 1.5-Amp output
• Hands-free Bluetooth® 4.2
• A2DP with aptX™ (for hands-free calling and music streaming)

ADVANCED SOUND

HEIGH10’s sonic capabilities allow for a versatile and more detailed sound experience.

• Built-in amplifier (16W RMS x 4)
• 4V, 6ch RCA audio outputs with subwoofer control
• Toslink (optical) digital audio output
• 15-band adjustable graphic EQ
• 3 user EQ presets for each audio source
• Built-in crossover with High Pass Filter (HPF) and Low Pass Filter (LPF)

A SAFER RIDE

HEIGH10 4 AHD camera inputs help reduce risk and increase safety.

• 4 independent AHD camera inputs and triggers
• Onscreen camera input switching
• Customisable camera settings menu
• Rear camera selectable audio input for commercial and motorhome/campervan applications

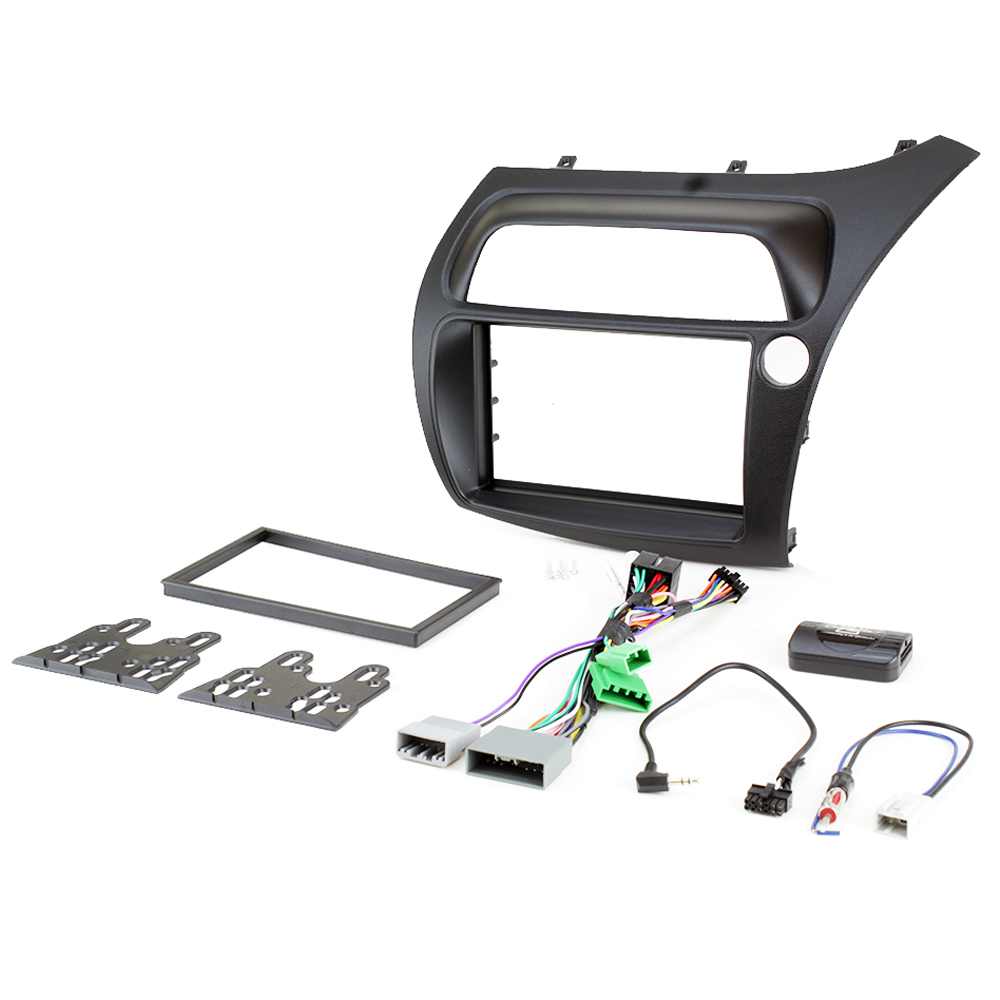

INCLUDED

• HEIGH10 10-inch touchscreen display/infotainment system
• Vehicle-specific radio mounting dash kit
• Complete the vehicle integration module
• Vehicle & radio specific plug-and-play harnessing
• AM/FM antenna adapter
• USB retention cable
• Stereo connection lead

SPECIFICATION

GENERAL
• Recording Resolution: 1024 x 600
• Screen Size: 10 inches
• Manufacturer’s Warranty – Parts: 1 year
• Operating Voltage: 9.0VDC to 18VDC
• Grounding system; Negative Ground
• Max current consumption: 10A fused

DIMENSIONS
• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)DISPLAY
• 10-inch Diagonal
• 16:9 aspect ratio
• 1024 x 600
• Pixels: 1,843,200
• Active area 222.72 (W) x 125.28 (H) mm
• Operating Temperature (C) -20° to 70°

AUDIO
• Load impedance: 4Ω nominal / 2Ω allowable
• Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
• Audio output level (max): 4.0V preout
• EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
• Gain: ±12dB (2dB/step)
• HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Gain: -14dB to 7dB (1dB/step)
• Phase: 0 or 180
• Speaker level: ±9dB (1dB/step)
• Time Alignment: 0 to 133 step (inch/ms)

FM TUNE
• 87.9MHz to 107.9MHz
• Usable sensitive 0dB (mono S/N: 30dB)
• SNR: 65dB

AM TUNER
• 530KHz to 1710KHz
• Usable sensitive 0dB (mono S/N:20dB)
• SNR 58dB

USB
• USB 2.0
• Max current supply 1.5A
• USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
• File system: FAT32, NTFS

BLUETOOTH
• V4.2 dual
• 4dBm Class2
• 2.4GHz to 2.48GHz

CAMERA(S) VIDEO INPUTS
• x4 Camera inputs
• NTSC OR PAL video formats

HDMI INPUT
• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p

TOSLINK (OPTICAL)
• Output: 48khz Variable

BACKGROUND IMAGE (USER)
• File Format: JPG / PNG
• Resolution: 1024 x 600
• File size is not limited

AUDIO/VIDEO FORMATS AUDIO
• MPEG-1 Audio Layer-3 (.mp3)
• FLAC (.flac)
• MPEG-2 Advanced Audio (.aac)
• MPEG-4 Audio (.m4a)
• Windows Audio (.wav)
• OGG Audio (.ogg)

VIDEO
• QuickTime (.mov)
• MPEG-4 Video (.mp4)
• Microsoft AVI (.avi)
• MPG Video (.mpg)
• MPEG Video 1/2 (.mpeg)
• VOB DVD (.vob)
• Flash Video (.flv)

• JPEG (.jpg)
• CompuServe GIF (.gif)
• PNG (.png)
• JPEG (.jpeg)
• Bitmap(.bmp)

VEHICLE APPLICATION

Make Model Year Compatibility
Honda Civic Hatchback 2005-2011 (8th Generation) Please note: this kit is not compatible with OEM navigation systems or amplified models

DOWNLOADS

Instructions
