Bigger Screen. Smarter Experience.

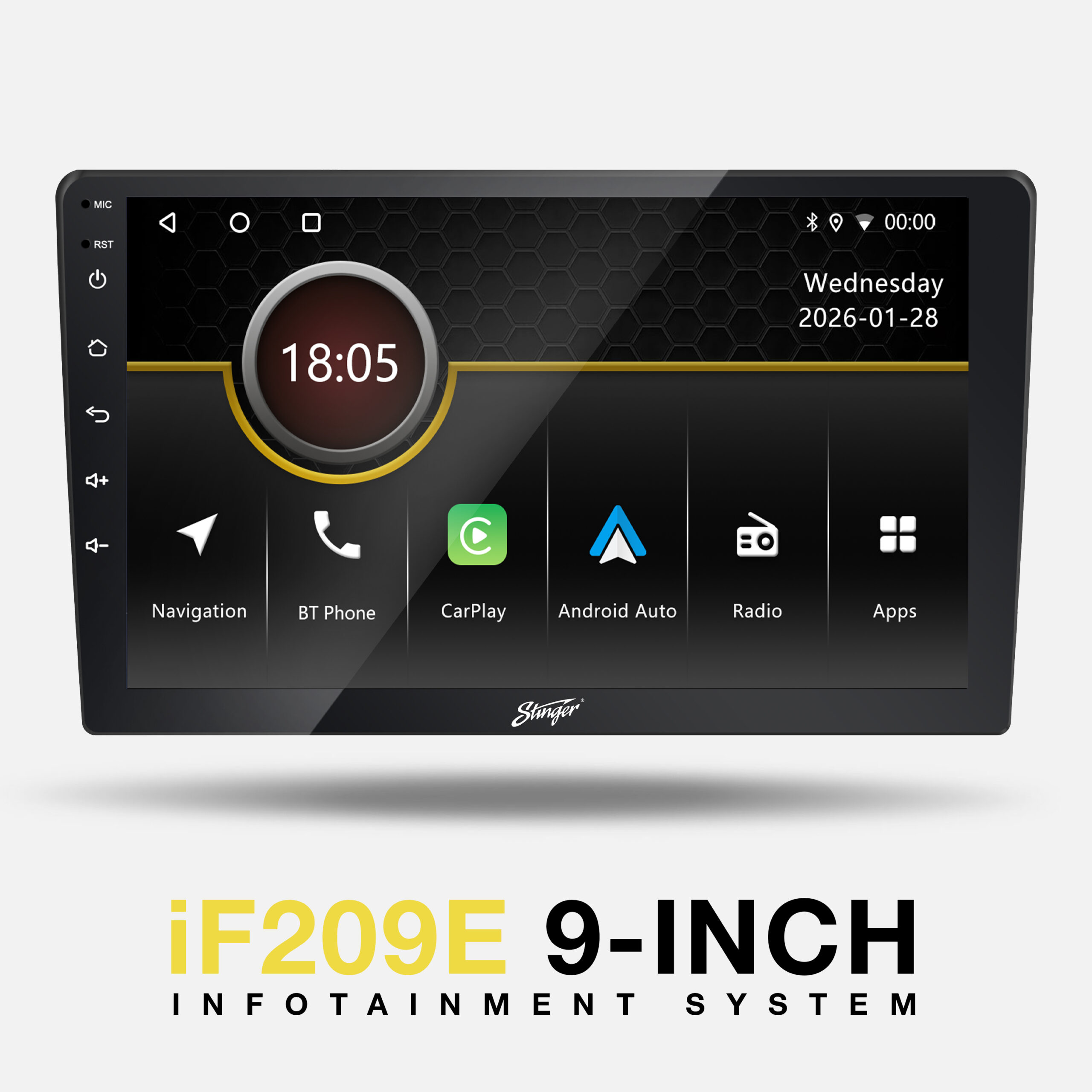

The Stinger iF209E is designed for drivers who want more from their dashboard. Featuring a vibrant 9” QLED touchscreen with a crisp 720 × 1280 resolution, the iF209E transforms your vehicle with modern connectivity, advanced multimedia and powerful audio performance.
With both wired and wireless Apple CarPlay® and Android Auto™, your favourite apps, navigation, music and messages are always within easy reach. Paired with the Connects2 CTK9 vehicle-specific fitting kit range, the iF209E delivers a seamless OEM-style upgrade with a clean, integrated installation.
A True In-Car Multimedia Upgrade
-
Powered by Android 13, the iF209E offers a fast, responsive and highly customisable user experience. Built-in 4G connectivity and independent tablet mode allow the unit to operate separately from your smartphone, giving you direct access to apps, streaming services, navigation and online content directly from the display.
With support for app downloads via the Google Play Store, the iF209E becomes more than just a head unit — it becomes the centre of your connected driving experience.
Key Highlights
- 9” QLED touchscreen display
- High-resolution 720 × 1280 screen
- Wired & wireless Apple CarPlay®
- Wired & wireless Android Auto™
- Built-in 4G independent tablet mode
- Android 13 operating system
- WiFi hotspot capability
- Google Play Store app support
- Bluetooth 4.2 connectivity
Advanced Audio Performance
The iF209E has been engineered with sound quality in mind. A powerful 32-band graphic EQ allows precise audio tuning, while support for advanced DSP setup via pre-installed AudioControl & Phoenix Gold applications gives installers and enthusiasts greater control over their system performance.
Dedicated RCA outputs and a mono subwoofer output make the iF209E an excellent foundation for amplified audio upgrades and premium sound systems.
Audio Features
- 32-band graphic EQ
- Advanced DSP integration support
- 2 RCA pre-outs
- Mono subwoofer output
- Bluetooth audio streaming
- AM/FM RDS radio
- Optional DAB via USB
Designed for Seamless Vehicle Integration
The Stinger iF209E has been designed to work with the Connects2 CTK9 vehicle-specific fitting kit range, giving you a complete upgrade solution for a clean, OEM-style installation.
Each CTK9 fitting kit is designed around the vehicle dashboard, with a fascia that allows the iF209E to fit seamlessly into the original interior. The included interfaces and harnesses help retain key vehicle functionality, making the upgrade feel integrated rather than aftermarket.
Integration Features
- Designed for use with Connects2 CTK9 vehicle-specific fitting kits
- OEM-style fascia for a seamless dashboard fit
- Interfaces and harnesses included, retain key vehicle functionality
- Clean, integrated installation
SPECIFICATION
1. Product Overview
The IF209E is an Android-based in-vehicle infotainment system designed to provide navigation, entertainment, connectivity, and vehicle integration in a single platform. It combines GPS navigation, Bluetooth communication, multimedia playback, wireless networking, and camera support, CarPlay and Android Auto to enhance the driving experience.
2. Key Benefits
• Easy-to-use Android platform
• Reliable GPS navigation with support for multiple satellite systems
• Bluetooth hands-free calling and music streaming
• High-quality audio with support for external amplifiers and subwoofers
• Rear-view camera support for improved safety
• Dual-band Wi‑Fi and optional 4G connectivity
• Licensed Apple CarPlay and Android Auto
• Steering wheel control compatibility
3. Main Features
Android Operating System
• Modern, familiar user interface
• Support for compatible Android applications
Navigation & Location Services
• GPS, GLONASS, Galileo, and BeiDou support
• Accurate vehicle positioning and route guidance
Wireless Connectivity
• Dual-band Wi‑Fi (2.4 GHz and 5 GHz)
• Bluetooth 5.0 support
• Optional 4G mobile connectivity
Multimedia Entertainment
• DAB app pre-installed *requires CT9DAB
• Support for common audio and video formats
• Built-in radio tuner
• Full HD video playback up to 1080p
Audio System
• Built-in 4-channel amplifier
• Front, rear, and subwoofer outputs
• External amplifier support
Vehicle Integration
• Steering wheel control support
• Reverse camera integration
• Parking brake signal support
• CAN bus compatibility (where supported)
4. Technical Specifications
• Processor: Quad-core ARM processor
• Memory: 4 GB RAM
• Storage: 64 GB eMMC
• Operating System: Android 11
• Display Interface: MIPI display support
• Camera Inputs: Up to 2 camera inputs
• Audio Outputs: Front, Rear, and Subwoofer RCA outputs
• USB: 3 × USB 2.0 ports
• Wireless: Wi‑Fi, Bluetooth, GNSS, Optional 4G
5. Installation & Connections Guide
• Power Connection – Connects the system to vehicle power and ignition.
• Speaker Connections – Connects front and rear vehicle speakers.
• GPS Antenna – Provides satellite navigation reception.
• 4G Antenna – Enables mobile network connectivity (optional).
• USB Ports – Connect storage devices and accessories.
• Reverse Camera Input – Enables automatic rear camera display while reversing.
• Steering Wheel Controls – Supports compatible vehicle steering wheel buttons.
• External Amplifier Output – Allows connection to aftermarket amplifiers.
• Audio Inputs – Supports external audio sources and microphones.
6. Operating Conditions
• Operating Voltage: 9 V to 16.5 V
• Typical Vehicle Voltage: 12 V
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -25°C to +80°C
7. Physical Dimensions
• Main Unit Dimensions: 165 mm × 65 mm
8. Package Contents
- IF209E Main Unit
- Wiring Harness
- GPS Antenna
- Installation Documentation
- Additional vehicle-specific fitting accessories. Connects2 CTK9/CT34 packages available separately.
