LAND ROVER DEFENDER 2007-2016 10-INCH TOUCH SCREEN STEREO WITH INTEGRATED FITTING KIT | HEIGH 10 | APPLE CARPLAY & ANDROID AUTO

Part no.: UN1810E-LR1

LAND ROVER DEFENDER 2007-2016 – EVERYTHING YOU NEED TO ENHANCE YOUR INFOTAINMENT SYSTEM

Upgrade your Land Rover Defender’s stereo with the HEIGH10 10-inch infotainment system. Retain all OEM features, vehicle settings, and more. All in one easy-to-install, plug-and-play package.
Please note: for non-navigation vehicles. Enhanced vehicle gauges for 2012-2016 models only

Media-Icons

In Stock
Add Apple CarPlay or Android Auto
Complete Plug & Play Vehicle Integration
TouchScreen-Iconhigh-resolution 10-Inch Touchscreen

Land Rover Defender 2007- 2016 10″ stereo upgrade with Apple CarPlay, Android Auto, DAB Digital Radio.

2012-2016 models with the large grey multiplug also get Enhanced Off-Road & Performance Gauges.

Upgrade your Land Rover Defender Vehicle radio with the HEIGH10 UN1810E-LR1 10-inch infotainment system featuring Apple CarPlay, Android Auto and DAB Digital Radio. Retain all OEM features and vehicle settings. 2012- 2016 models also get enhanced off-road, performance gauges. All in one easy-to-install, plug-and-play package. Please note: for non-navigation Land Rover Defender vehicles.

KEY FEATURES

HEIGH10 – 10 INCH TOUCHSCREEN
Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colours for a full visual experience, the HEIGH10® is designed to enhance screen size and infotainment features for drivers. The display and main tuner box offer a modular design, bolstering installation flexibility in space-limited applications and in some cases, even where no installation dash kit is available.

The HEIGH10 features Anti-Glare and Anti-Reflection technology for the best outdoor visibility. Personalize your display with customizable RGB illumination to match factory illumination, or create your own.

INTEGRATION

• The included dash kit and mounting ensure a seamless and factory-like installation, giving your vehicle’s HEIGH10 display a professional and integrated look.
• The vehicle-specific harness establishes a direct and secure connection between your vehicle and the HEIGH10, ensuring compatibility and optimal performance.
• The interface offers enhanced control over your infotainment system, allowing you to manage camera triggers. 2012-2016 models also show advanced vehicle gauges

Enhanced Vehicle Gauges (2012-2016 models)

The HEIGH10 also offers advanced vehicle gauges for the 2012-2016 models

Eight gauges on the screen
Save two display presets
Battery voltage
Oil temperature
Fuel level
Coolant temperature… and many more

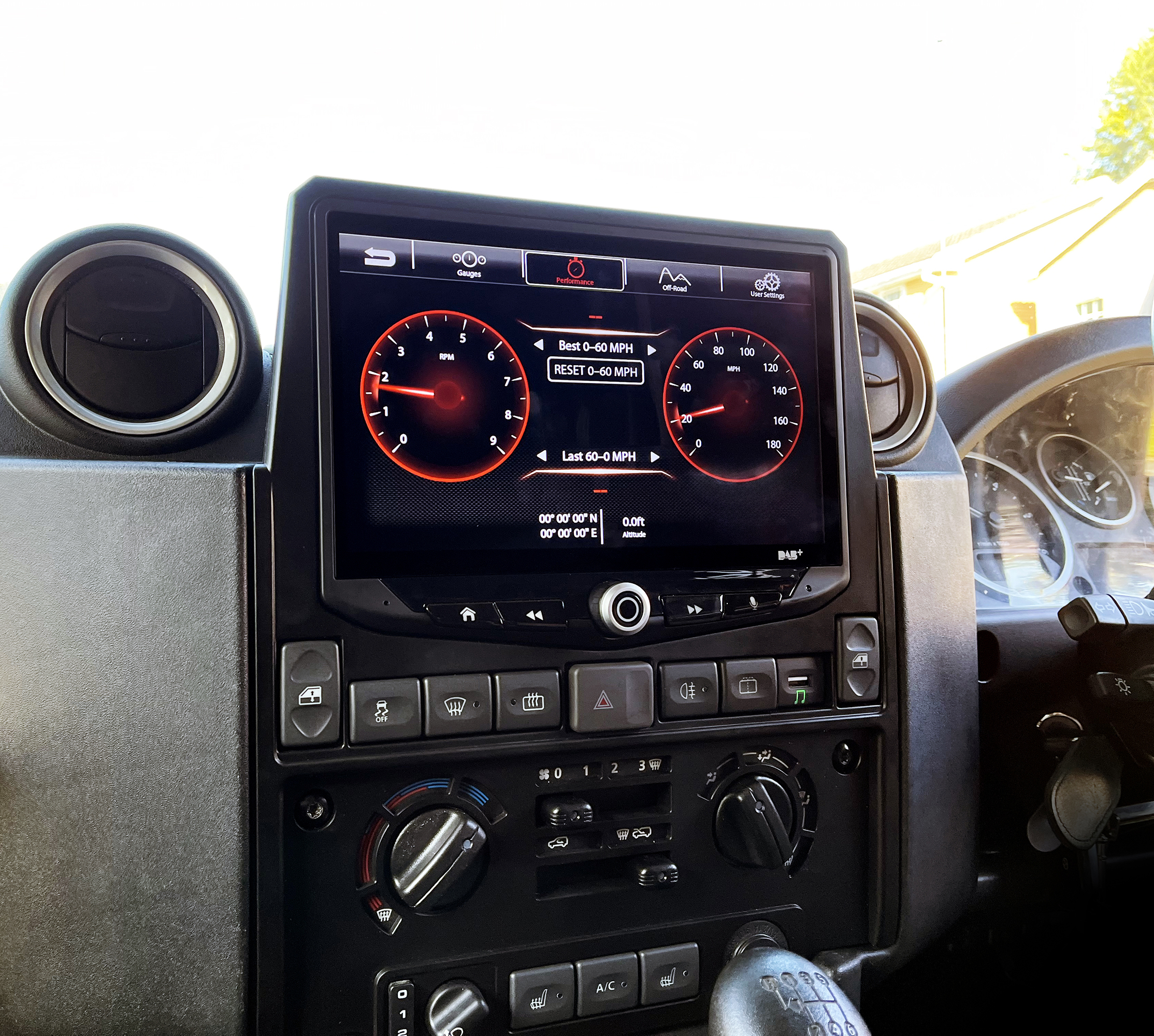

Vehicle Performance (2012-2016 models)

Speed
RPM
Current/best 0-60mph time
Current/best 60-0mph brake distance
Current/best 1/4-mile time

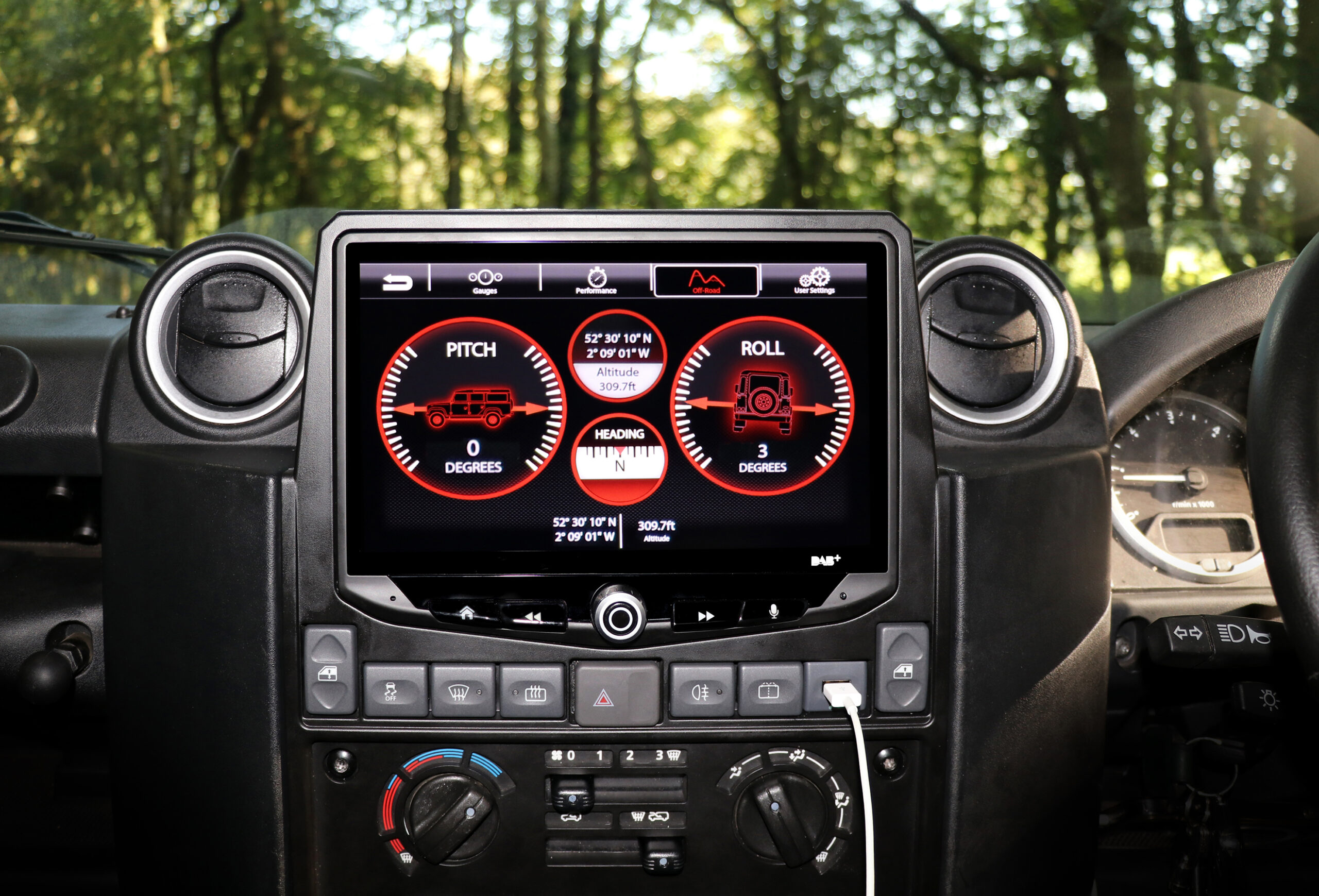

Vehicle Off-Road (2012-2016 models)

Pitch
Roll
GPS coordinates
Compass
Altitude

RETAINS

• Climate control functionality
• Dashboard button functionality

FEATURES

• Apple CarPlay and Google Android Auto™

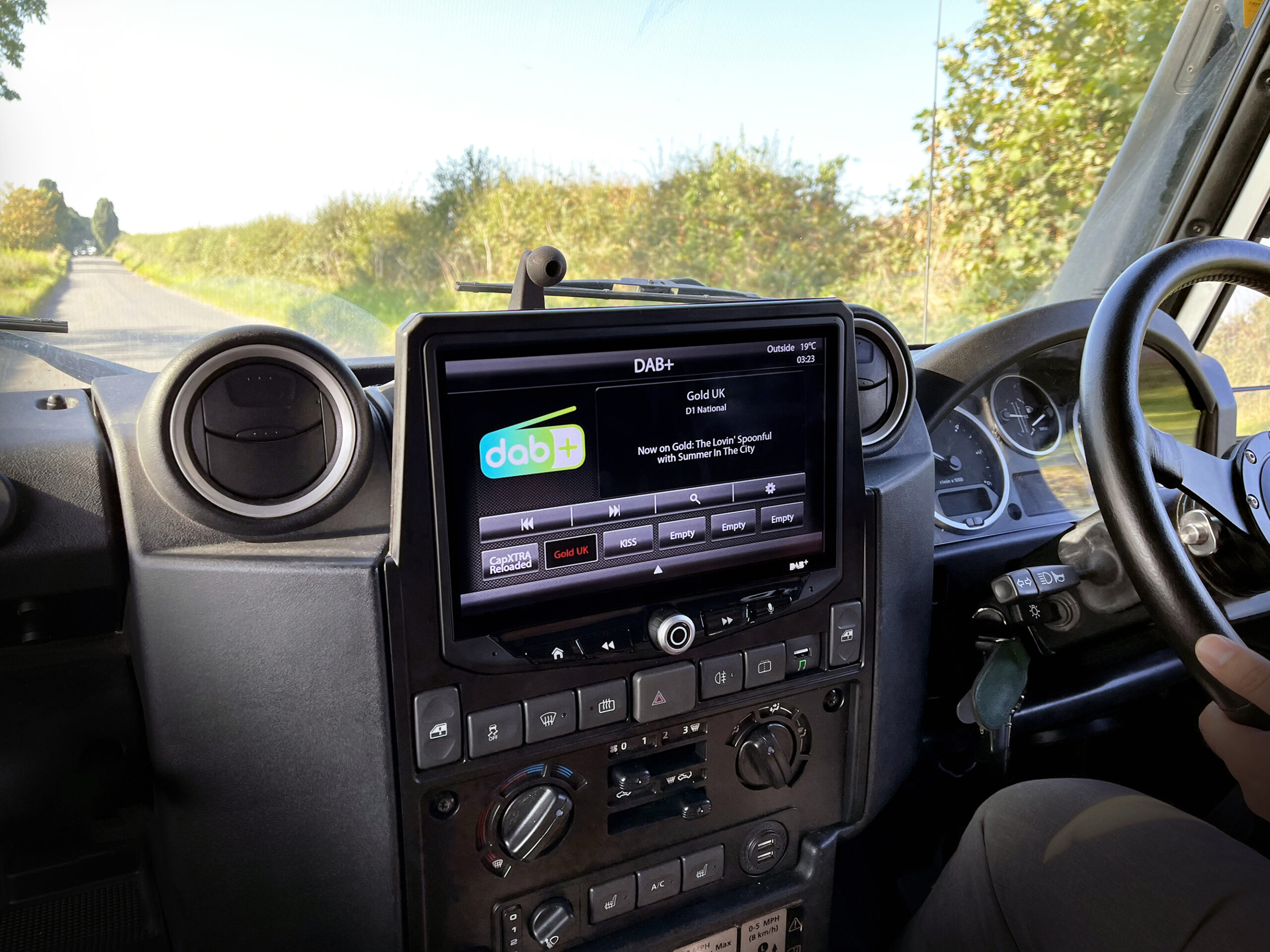

• DAB+ Digital Radio tuner
• Access to your smartphones music and navigation capabilities
• AM/FM radio with PTY
• Built-in MicroSD card
• 2 USB rear inputs, 1.5-Amp output, HDMI input
• Handsfree Bluetooth 4.2 A2DP with aptX™ for handsfree calling and music streaming

SPECIFICATION

GENERAL
• Recording Resolution: 1024 x 600
• Screen Size: 10 inches
• Manufacturer’s Warranty – Parts: 1 year
• Operating Voltage: 9.0VDC to 18VDC
• Grounding system; Negative Ground
• Max current consumption: 10A fused

H10 DIMENSIONS
• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)DISPLAY
• 10-inch Diagonal
• 16:9 aspect ratio
• 1024 x 600
• Pixels: 1,843,200
• Active area 222.72 (W) x 125.28 (H) mm
• Operating Temperature (C) -20° to 70°

AUDIO
• Load impedance: 4Ω nominal / 2Ω allowable
• Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
• Audio output level (max): 4.0V preout
• EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
• Gain: ±12dB (2dB/step)
• HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Gain: -14dB to 7dB (1dB/step)
• Phase: 0 or 180
• Speaker level: ±9dB (1dB/step)
• Time Alignment: 0 to 133 step (inch/ms)

FM TUNE
• 87.9MHz to 107.9MHz
• Usable sensitive 0dB (mono S/N: 30dB)
• SNR: 65dB

AM TUNER
• 530KHz to 1710KHz
• Usable sensitive 0dB (mono S/N:20dB)
• SNR 58dB

USB
• USB 2.0
• Max current supply 1.5A
• USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
• File system: FAT32, NTFS

BLUETOOTH
• V4.2 dual
• 4dBm Class2
• 2.4GHz to 2.48GHz

CAMERA(S) VIDEO INPUTS
• NTSC OR PAL video formats

HDMI INPUT
• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p

TOSLINK (OPTICAL)
• Output: 48khz Variable

BACKGROUND IMAGE (USER)
• File Format: JPG / PNG
• Resolution: 1024 x 600
• File size is not limited

AUDIO/VIDEO FORMATS AUDIO
• MPEG-1 Audio Layer-3 (.mp3)
• FLAC (.flac)
• MPEG-2 Advanced Audio (.aac)
• MPEG-4 Audio (.m4a)
• Windows Audio (.wav)
• OGG Audio (.ogg)

VIDEO
• QuickTime (.mov)
• MPEG-4 Video (.mp4)
• Microsoft AVI (.avi)
• MPG Video (.mpg)
• MPEG Video 1/2 (.mpeg)
• VOB DVD (.vob)
• Flash Video (.flv)

• JPEG (.jpg)
• CompuServe GIF (.gif)
• PNG (.png)
• JPEG (.jpeg)
• Bitmap(.bmp)

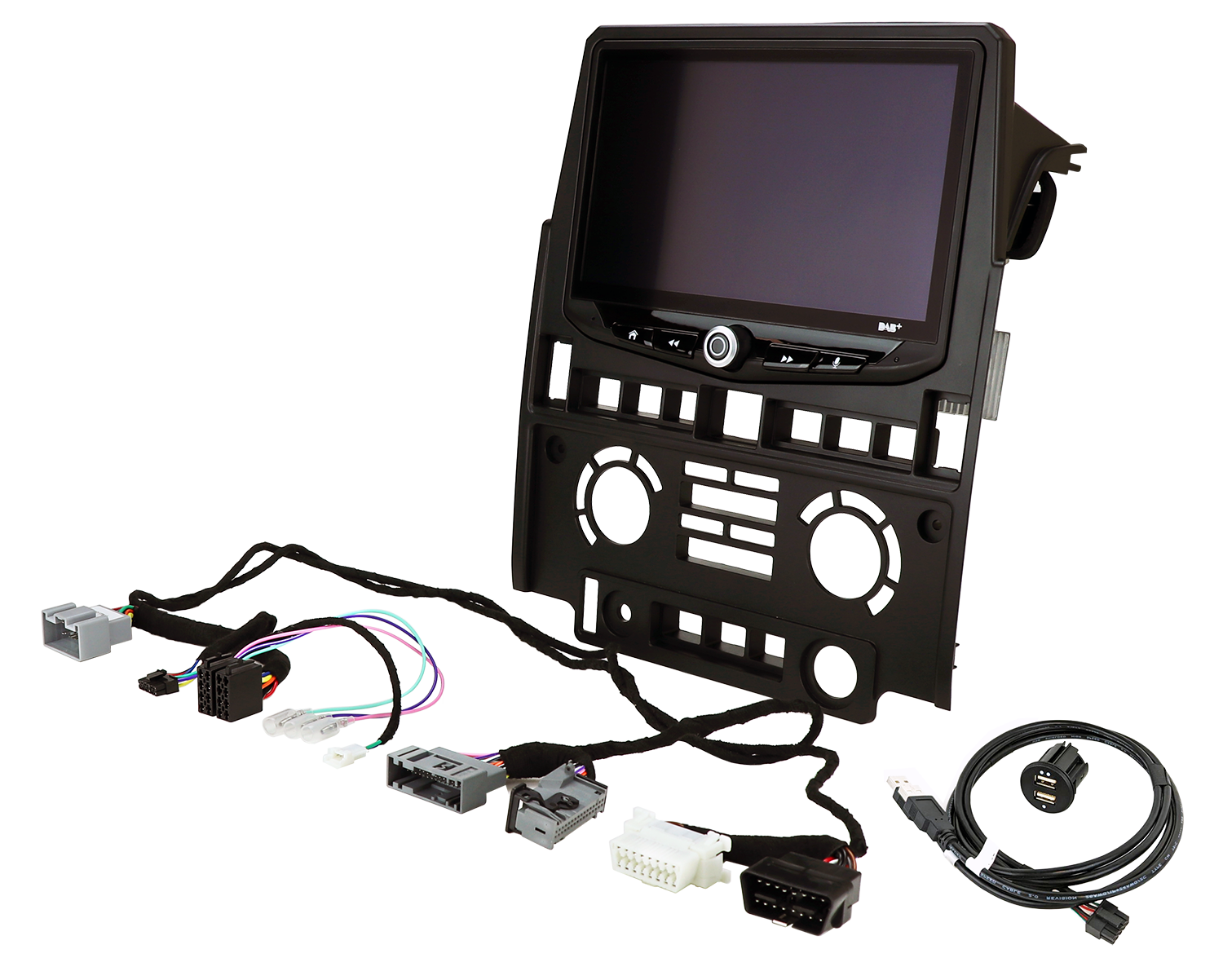

INCLUDED
• HEIGH10 10-inch touchscreen display/infotainment system
• Vehicle-matched radio mounting dash kit
• Complete the vehicle integration module
• Vehicle & radio specific plug-n-play harnessing
• AM/FM antenna adapter
• USB retention cable
• Stereo connection lead

See our full range of H10 accessories. HERE



Land Rover Defender

Share your installs: @stinger_eu

Instructions

Installation Instruction

H10 User Guide

H10 Fitting Guide

Connection guide

Video

Downloads

Firmware Update (v12)

Vehicle Compatibility

Make  Model Year from Year to Connector Model Note Features
Land Rover Defender 2007 2011 ISO Connector Equipped with the 2.4TDCI engine While this vehicle is compatible, it does not currently provide support for vehicle data gauges.
Land Rover Defender 2012 2016 large grey multiplug Equipped with the 2.2TDCI engine This vehicle will enable vehicle data gauges, including engine performance, pitch, and roll, to function properly
